Snowblower

SQ Diesel-Powerful and able to remove even hard snow with a large-diameter single-stage auger

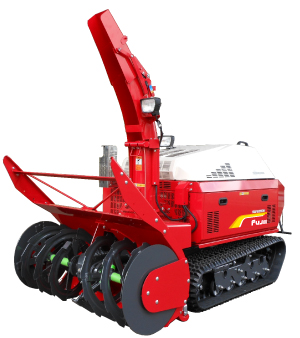

SQ Diesel photo
SQ1235DK-a

Maximum output 34.7 ps / 34.2 hp
Clearing width 1200 mm / 47.2 inc



Functions

The details of the following functionalities are displayed when you place the cursor on the icons.

HST zero start Wet disk / Side clutch Movavle trank roller Stepless transmission Full electric shooter Release lever / Blower brake 3-point deadman Parking brake / Clutch movement Afterglow panel light Foot light

Snowmatic plus Lock-on function Back autoliftAlarm horn  Back buzzer Fuel tank stand, tool holder

Features
Auger
Powerful and Clear

All "Fujii Snow Rotary"s are two-stage snowblower and equipped with a large-diameter augers. Snowmatic plus(automatic horizonatal and vertical auger control) and Back autolift(automatic auger rasing at reversing) makes you removing snow like a professional. (only SF1244DK2-A)

Two-point support trank roller
Double-Support Track Roller

The track rollers of large- and medium-size machines are supported at both sides to ensure.

Blower brake release lever
Blower Brake Release Lever

You can release the blower brake with lever to replace the shear bolts easily.

Three-point deadman clutch
Three-Point Deadman

You can engage the clutch with gripping 1)Loop handle, 2) HST lever or 3) Hydraulic lever.


Specifications
MODEL NAME
SQ1235DK-a
Engine Model Kubota D1803-CR-YMD
Type Water-cooled
3 cylinders
Maximum output
25.5 kW / 34.7 PS / 34.2 HP
Fuel tank capacity 25.0 L / 6.6 gal
Start-up system Starter motor
Displacement 1826 cc
Performance Clearing width 1200 mm / 47.2 in
Clearing height 700 mm / 27.6 in
Maximum clearing capacity 228 t/h
Maximum throw distance 30 m / 32.8 yd
Work section Lift Hydrauric
Roling Hydrauric
Chute adjustment Electric
Dimensions Total length 2720 mm / 107.1 in
Total width 1210 mm / 47.6 in
Total height
1860 mm / 73.2 in
Total weight 1233 kg / 2718.3 lb.
Travel section Speed Hydraulic / Variable speed

Crawler width 300 mm / 11.8 in
Side clutch Wet clutch

●The specifications and models are subject to change for improvement without notification.
●Work performance varies depending on work conditions.
●The maximum output is the gross output value of a typical engine alone.

Option
photo Product name Remarks
Short shooter Short chute
 Extension auger housing Extension auger housing
