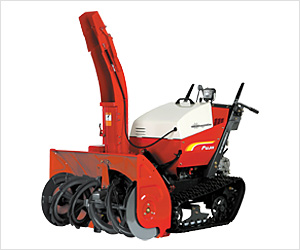

Snowblower

SH Gasoline/User-friendly snowblower with automatic operation buttons

SH Gasoline
Whole Right side Front
Left side Rear Operation panel
Top Operator's view Engine
SH913MRA1

Maximum output13ps/13.2hp
Clearing width900mm/35.5inc

SH913MR1

Maximum output13ps/13.2hp
Clearing width900mm/35.5inc

User's comments

Functionalities

Note:Automatic vehicle speed control function is available only for SH913MRA1.

The details of the following functionalities are displayed when you place the cursor on the icons.

Automatic vehicle speed control Snowmatic HST zero start Stepless transmission Back autolift  Independent movable auger Full electric shooter
Features
Auger
Sturdy design withstanding tough work [Auger]

Fujii employs large-diameter single-stage augers in all its snowblowers for their high biting performance. The augers are supported at both ends for all the models and excel in destructive power.

Automatic vehicle speed control

*Type A is equipped with a function to automatically control the vehicle speed according to the quality and quantity of snow. A function to automatically control the vehicle speed according to the quality and quantity of snow.

Automatic operation buttons enabling easy operations

* "Snowmatic" (a functionality to automatically keeps the auger horizontal) and "back autolift" (a functionality to automatically lift the auger part when the snowblower is moving backward) are part of the standard features.

Excellent operating performance and reliable snow removing capacity

*HST zero start function that returns the HST lever to "N" when the traveling clutch is at the "off" position.

*Independent movable snow removing part keeps the steering wheel at a constant height, enabling operation with a comfortable posture.

*Employs a boat-shaped crawler that is effective to move the snowblower backward.

*A smart curvy design with a full bonnet further expands the operator's view.

Specification
  SH913MRA1 SH913MR1 SH913ML1-S
Performance Clearing width 900mm / 35.5inc 900mm / 35.5inc 900mm / 35.5inc
Clearing height 570mm / 22.5inc 570mm / 22.5inc 570mm / 22.5inc
Maximum clearing capacity 80 t/h 80 t/h 80 t/h
Maximum throwing distance 18m / 16.5yard 18m / 16.5yard 18m / 16.5yard
Dimention Total length 1680mm / 66.0inc 1680mm / 66.0inc 1680mm / 66.0inc
Total width 900mm / 35.5inc 900mm / 35.5inc 900mm / 35.5inc
Total height
(with deflector folded down)
1600mm / 63.0inc 1600mm / 63.0inc 1600mm / 63.0inc
Total weight 307kg / 677lbs 307kg / 677lbs 307kg / 677lbs
Engine Model Mitsubishi GM401 Mitsubishi GM401 Mitsubishi GM401
Type Air-cooled G Air-cooled G Air-cooled G
Maximum output
9.6kw / 13.0ps / 13.2hp
9.6kw / 13.0ps / 13.2hp 9.6kw/13ps/13.2hp
Fuel tank capacity 6L / 1.6gal 6L / 1.6gal 6L / 1.6gal
Start-up system Cell motor Cell motor Cell motor
Snow removing part Lift ElectricHydrauric Hydrauric Hydrauric
Rolling Hydrauric Hydrauric Hydrauric
Shooter adjustment Electric Electric Electric
Traveling part Transmission steps HST HST HST
Crawler width 200mm / 8inc 200mm / 8inc 200mm / 8inc
Side clutch Gear dock Gear dock Gear dock



  SH913MRA1 SH913MR1
Performance Clearing width 900mm / 35.5inc 900mm / 35.5inc
Clearing height 570mm / 22.5inc 570mm / 22.5inc
Maximum clearing capacity 80 t/h 80t/h
Maximum throwing distance 18m / 16.5yard 18m / 16.5yard
Dimention Total length 1680mm / 66.0inc 1680mm / 66.0inc
Total width 900mm / 35.5inc 900mm / 35.5inc
Total height 1600mm / 63.0inc 1600mm / 63.0inc
Total weight 307kg / 677lbs 305kg / 672lbs
Engine Model Mitsubishi GM401 Mitsubishi GM401
Type Air-cooled G Air-cooled G
Maximum output
9.6kw / 13.0ps / 13.2hp 9.6kw / 13.0ps / 13.2hp
Type 6L / 1.6gal 6L / 1.6gal
Start-up system Cell motor Cell motor
Start-up system Lift ElectricHydrauric ElectricHydrauric
Rolling ElectricHydrauric ElectricHydrauric
Rolling Electric Electric
Traveling part Transmission steps HST
automatic vehicle speed control
HST
Crawler width 200mm / 8inc 200mm / 8inc
Side clutch Gear dock Gear dock

*Figures in parentheses for clearing height apply when the optional extension auger housing or auger housing guard is mounted.
*All the diesel engines comply with the vehicle emission standard.
*The dimension with the deflector folded down is the actual measurement.

Option
Photo Priduct name Remarks
Extension auger housing Extension auger housing
Side marker Side marker (1 piece)
  Seat cover
  Canned spray paint
(Italian red)

  Canned spray paint
(Snow black)
