HOME>Snowblower>SH Gasoline

Snowblower

SH Gasoline/User-friendly snowblower with automatic operation buttons

SH Gasoline
Whole Right side Front
Left side Rear Operation panel
Top Operator's view Engine
SH913MRA2

Maximum output13ps/12.9hp
Clearing width900mm/35.4inc

SH913MR2

Maximum output13ps/12.9hp
Clearing width900mm/35.4inc

SH913ML2-S

Maximum output13ps/12.9hp
Clearing width900mm/35.4inc

User's comments

Functionalities

The details of the following functionalities are displayed when you place the cursor on the icons.

HST zero start Stepless transmission  Independent movable auger Full electric shooter

Special function for SH913MRA2
Automatic vehicle speed control Snowmatic Back autolift

Special function for SH913MR2
Snowmatic Back autolift

Features
Auger
Hugely Destructive Auger

All "Fujii Snow Rotary"s are two-stage snowblower and equipped with a large-diameter augers. The augers are supported at both sides. It gives the augers hugely destructive power.

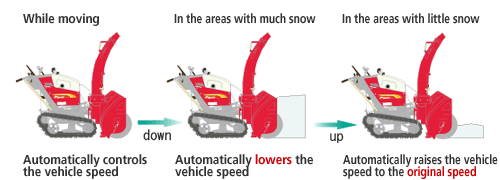

Automatic Driving Speed Control

*SH913MRA2 is equipped with the function, controingl driving speed automatically by snow condition.A function to automatically control the vehicle speed according to the quality and quantity of snow.

User-friendly buttun,"Easy" buttun

*Push the buttun. It control automatically "Snowmatic"and "Back Auto Lift" .
(For SH913MRA2 and SH913MR2)

Features for operability and safety

*HST Zero Start : HST lever return to stop position when driving clutch is off to avoid a sudden start.

*Independently-movable working part keeps the steering wheel at a constant height, and it makes a operator keep comfortable position.

*It adopts boat-shaped crawler that is effective to move backward.

Specification
  SH913MRA2 SH913MR2 SH913ML2-S
Engine Model Mitsubishi GB400
Type Air-cooled G
1 cylinder
Maximum output
9.6kW / 13.0PS / 12.9HP
Type 6.0L / 1.6gal
Start-up system Starter motor
Displacement 391cc
Performance Clearing width 900mm / 35.4in
Clearing height 570mm / 22.4in
Maximum clearing capacity 80t/h
Maximum throwing distance 18m / 19.7yd
Snow
Removing
part
Lift Electric hydrauric
Rolling Electric hydrauric -
Chute adjustment Electric
Dimention Total length 1680mm / 66.1in
Total width 900mm / 35.4in
Total height 1600mm / 63.0in
Total weight 307kg
/676.9lbs
305kg
/672.5lbs
295kg
/650.5lbs
Driving part Speeds

Hydrostatic/variable speed

Crawler width 200mm / 7.9in
Side clutch dog clutch

*Figures in parentheses for clearing height apply when the optional extension auger housing or auger housing guard is mounted.
*The dimension with the deflector folded down is the actual measurement.

Option
Photo Priduct name Remarks
Extension auger housing Extension auger housing
Side marker Side marker (1 piece)
Seat cover
